Upgrade the look of your original Xbox with this custom PCB set designed to add dual LED lighting to each controller port, available as a complete set of 4 boards in a range of LED colour options.

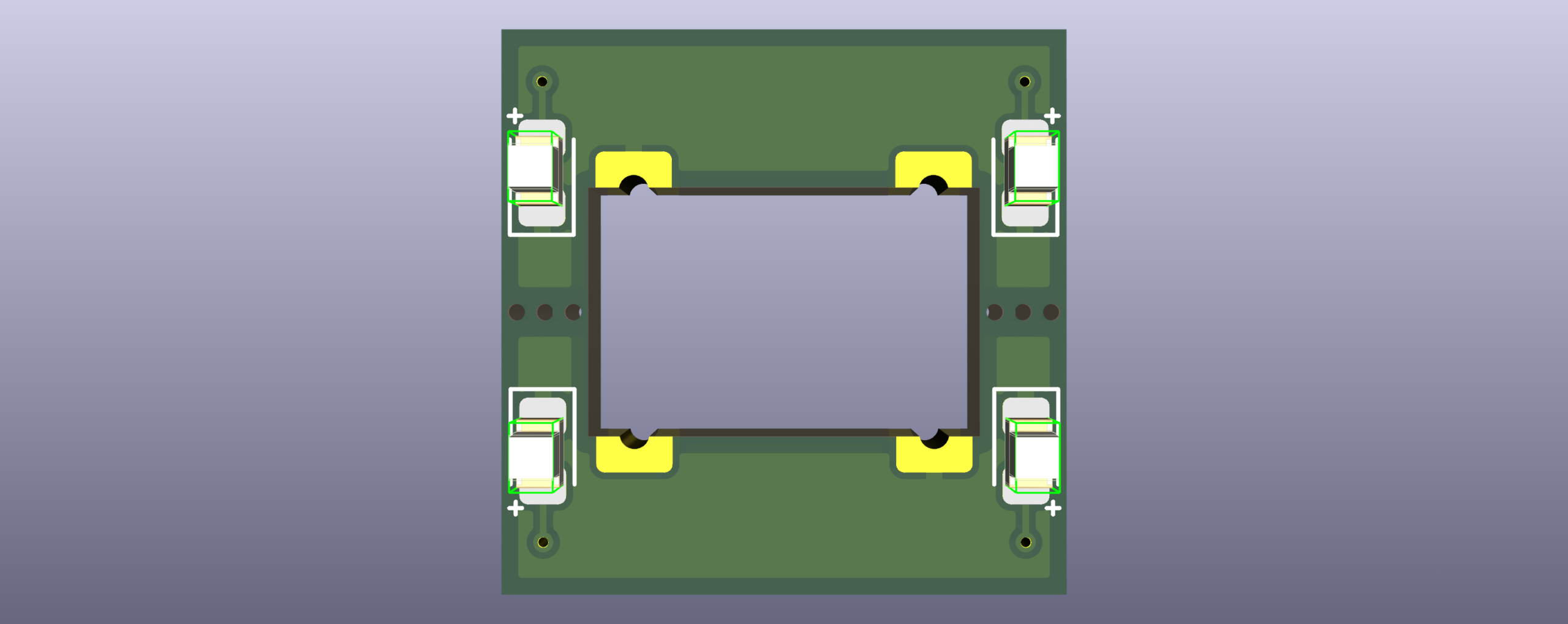

Our port upgrade kit adds newly designed PCBs behind each controller port, each featuring 2 surface-mount LEDs and matched resistors for clean, even lighting. Each set is hand assembled and individually tested for quality before shipping.
The dual-LED design provides a full, even glow for each port and performs noticeably better than traditional single-LED designs, which have to spread light across both the left and right side of the port.

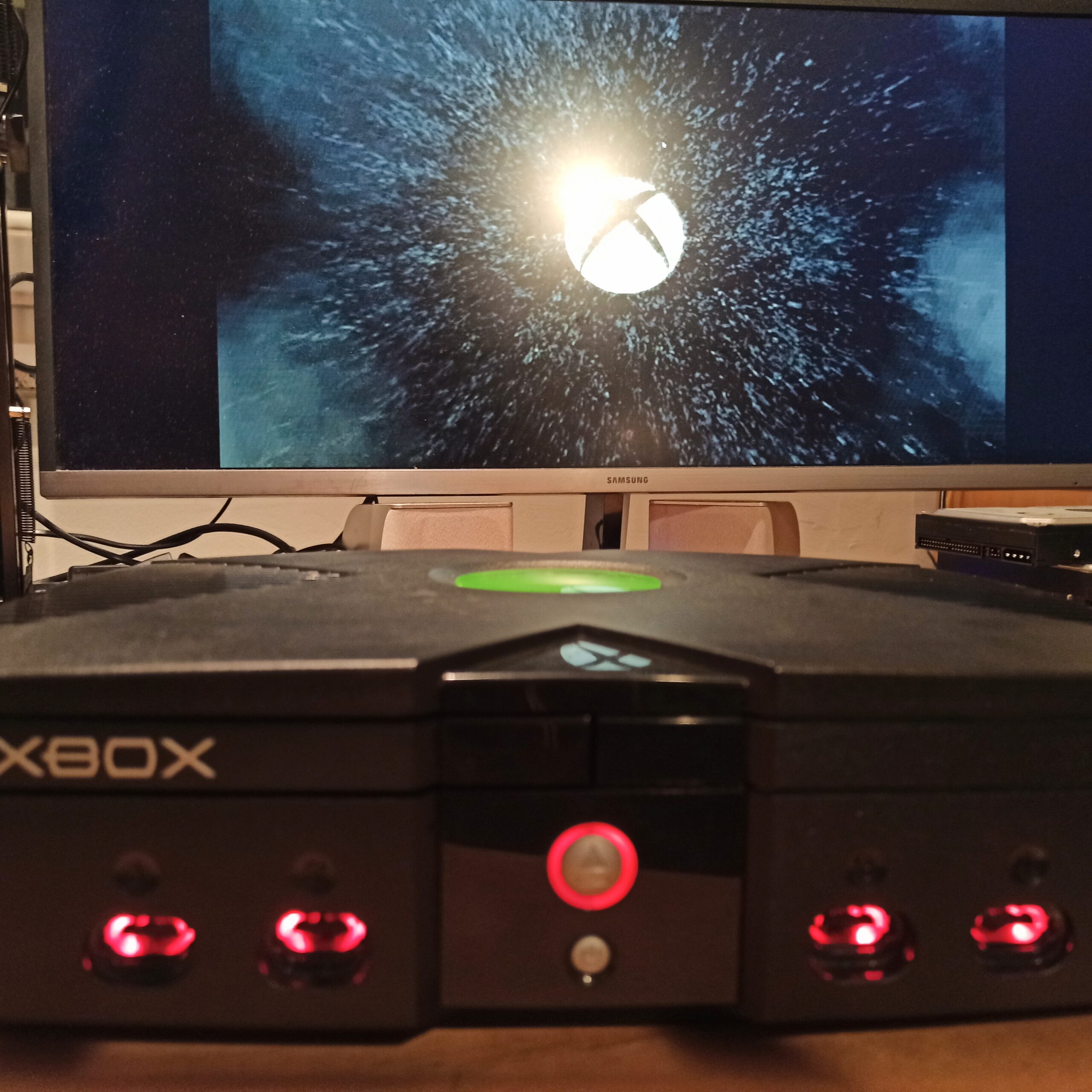

The boards are designed for an easy installation and sit flush within the original controller port housing. They install directly onto the existing wiring, tucking neatly inside the console for a safe and clean factory-style appearance with no exposed components, while lighting all 4 ports in your chosen LED colour.
Features
- custom designed PCB set for the original Xbox controller ports
- adds dual LED lighting to all 4 controller ports
- 2 surface-mount LEDs per port for a balanced and even glow
- matched resistors for stable brightness and long-term reliability
- dual-LED layout makes full use of left and right port light channels
- clean internal install with no exposed components
- sits flush inside the original controller port housing
- metal shielding cap can be refitted after installation for a fully sealed, factory-style finish
- installs directly to existing port wiring
- hand assembled and individually tested
LED Colour Options
Choose your LED setup for the set of 4 boards:
- single colour across all 4 ports
- mix of colours (let us know your custom combination across the 4 boards)
Available colours:
- red
- green
- blue
- yellow
- orange
- purple
- pink
Compatibility
- original Microsoft Xbox (OG Xbox only)
- compatible with all mainboard revisions v1.0 to v1.6
- not compatible with Xbox 360 or later consoles
