The NanoProm Kit is a dedicated Original Xbox EEPROM recovery tool designed for reading, writing, and restoring 24C02 EEPROM data both directly on the Original Xbox motherboard via LPC connection and externally using the included 24C02 adapter.
This kit is built around a pre-programmed Arduino Nano running NanoProm firmware and provides direct access to EEPROM functionality through a simple menu-driven interface on a PC or laptop via USB.
Full documentation, wiring diagrams, and firmware details are available on the NanoProm GitHub repository.
Intended use
The NanoProm Kit is designed for real-world Original Xbox repair and recovery tasks, especially in cases involving a crashed or failed hard drive, or a damaged mainboard where access to the system EEPROM is required.
Typical uses include:
- Replacing a failed or dead hard drive by reading the original EEPROM and locking a new drive
- Recovering EEPROM data from a broken or dead motherboard to use in another Xbox
- Fixing corrupted or incorrectly flashed EEPROM data using a known good backup
- Replacing a damaged 24C02 EEPROM chip on the motherboard
- Recovering EEPROM data from a console that will not boot using LPC access
- Moving a working hard drive to a replacement motherboard by copying EEPROM data
- Creating or flashing replacement EEPROM data generated from offline tools
- Backing up EEPROM data before making hardware or software modifications
- Restoring original factory EEPROM settings after failed modding or configuration changes
Features

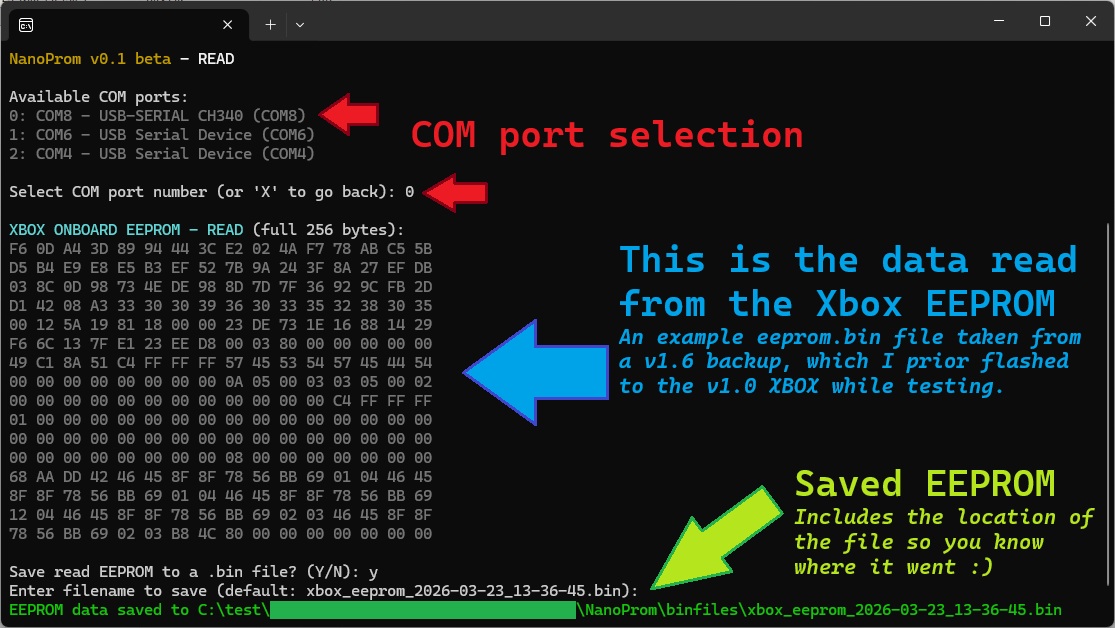

- Read, write, and restore 24C02 EEPROM data used in Original Xbox systems

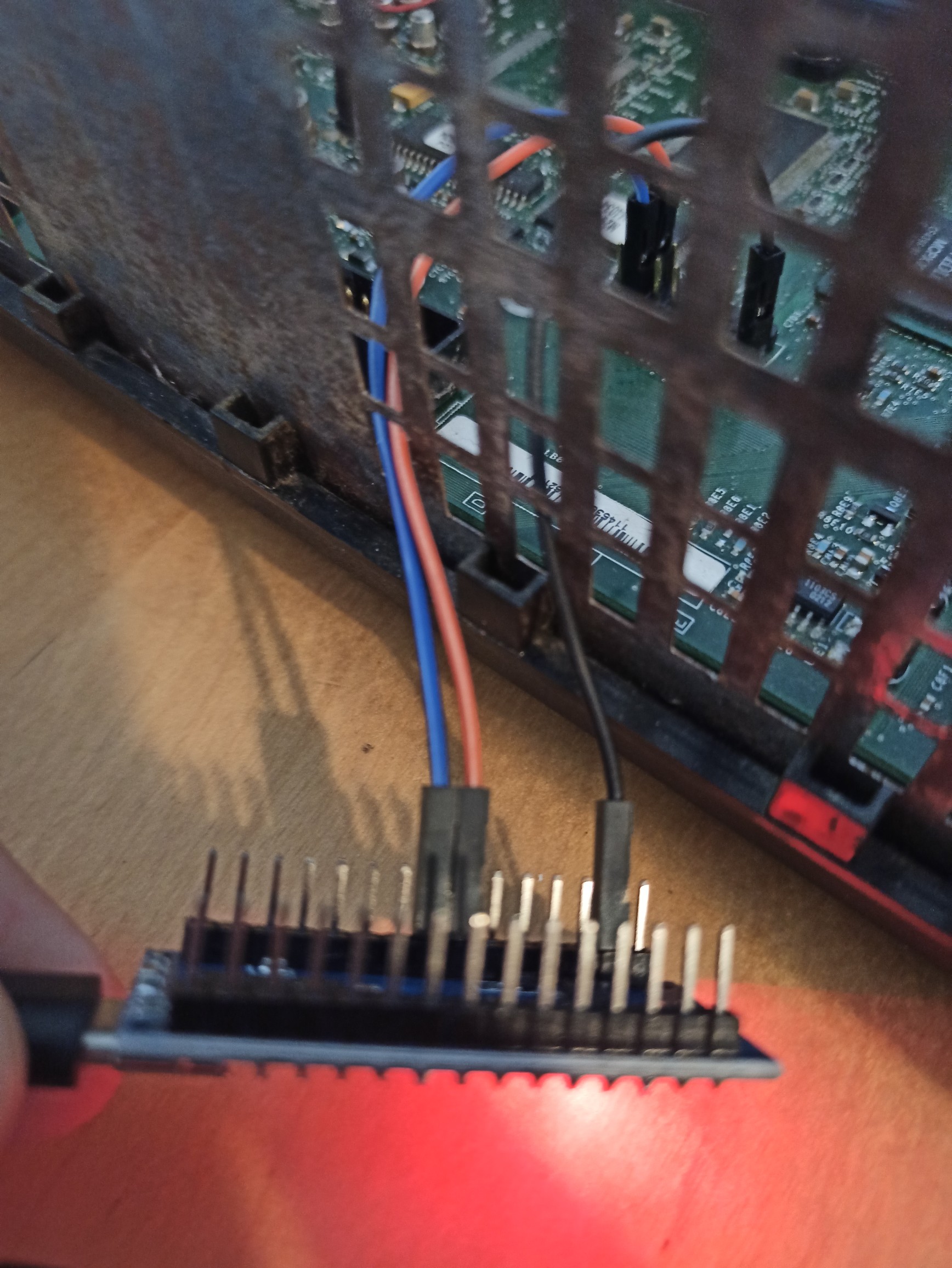

- Full support for both in-system LPC connection and external 24C02 chip programming

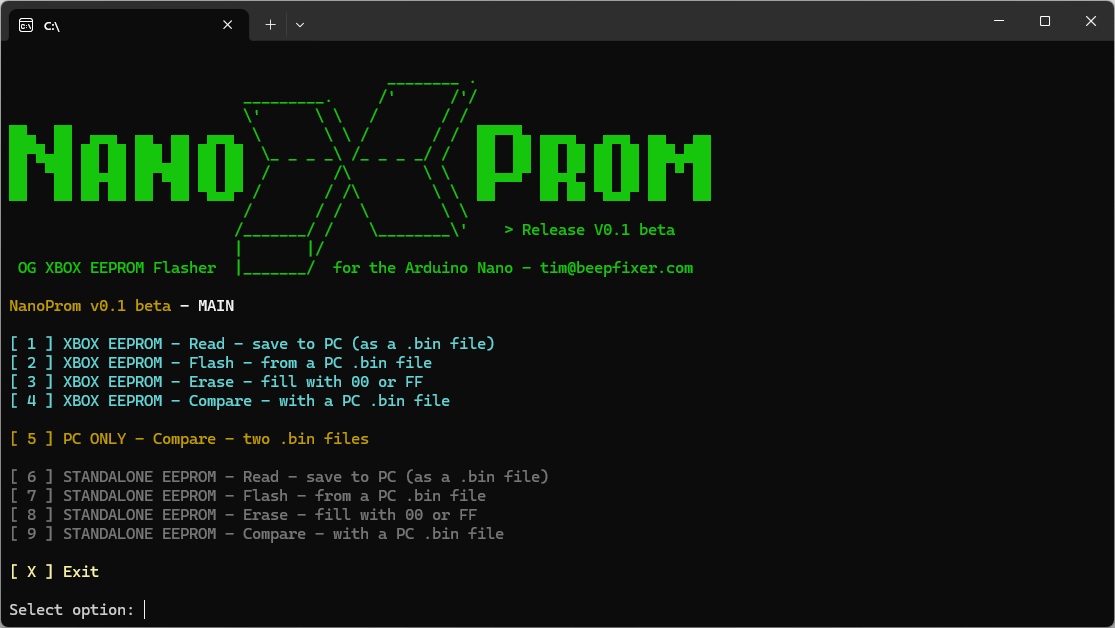

- Simple menu-driven interface running on the Arduino Nano firmware
- USB connection to PC or laptop for real-time interaction
- Backup and restore EEPROM data as
.binfiles - Verify EEPROM contents to ensure data integrity after write operations
- Lightweight, standalone hardware tool designed for consistent, repeatable use
What’s included
- Pre-programmed Arduino Nano running NanoProm firmware (ready to use, shipped in anti-static bag)
- 24C02 EEPROM adapter board for external chip programming
- Blank 24C02 EEPROM chip for testing or replacement use
- 4× female-to-female Dupont jumper wires for connections
- 2× 8-pin headers for LPC connection on Original Xbox motherboards
What you need (not included)
- PC or laptop with USB port
- USB Type-C cable for Arduino Nano
- Optional: basic soldering tools for installing the pinheaders to the LPC port (if not already present)
